Product Numbers:AL104
Price:US $ 0.2-0.8/m
Product introduction:Conductor: 7 strands 0.20mm,Tinned Copper, Bare Copper, CCA or Tinned CCA

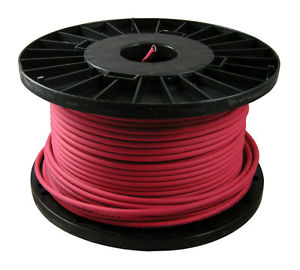

high quality 6core shield fire security Cable
Cable Introduction:
high quality 6core shield fire security Cable
Cable Introduction:
Burglar alarm cable is specifically designed for intruder alarm systems but finds use in other low voltage applications, and is normal available in 4, 6, 8 ,12 and 20 cores, in white outer sheaths, with rip-cord. The cores are made from 7 strands of 0.20mm annealed tinned copper, plain bare copper, copper clad aluminum or tinned copper clad aluminum.
Specification:
· Conductor: 7 strands 0.20mm,Tinned Copper, Bare Copper, CCA or Tinned CCA
· Insulation: PVC (Polyvinyl Chloride)
· Drain/Earth Wire: 7 stranded 0.20mm
· Shield: Aluminum/Polyester Foil
· Filler: Ripcord
· Sheath: PVC (Polyvinyl Chloride)
· Sheath Color: White / Grey / Black
· Voltage Rating: 300V
· Temperature Rating: -20ºC to +70ºC
Inner core shealth color:
2 cores blue - brown
3 cores brown - black - grey
4 cores blue - brown - black - grey
5 cores blue - brown - black - grey – black
Options: Solid conductor, FR sheath, LSZH Sheath, Polyethylene Sheath, Other Sheath color available.
|
No. of Cores x Nominal Cross Sectional Area(mm2) |
No. and Nominal Diameter of Strands(mm) |
Nominal Overall Diameter (mm) |
|
2 x 0.22 |
7/0.20 |
3.0 |
|
4 x 0.22 |
7/0.20 |
3.5 |
|
6x 0.22 |
7/0.20 |
4.1 |
|
8x 0.22 |
7/0.20 |
4.5 |
|
10x 0.22 |
7/0.20 |
5.2 |
|
12x 0.22 |
7/0.20 |
5.4 |
|
14x 0.22 |
7/0.20 |
5.8 |
|
20x 0.22 |
7/0.20 |
6.8 |
|
30x 0.22 |
7/0.20 |
8.4 |
|
40x 0.22 |
7/0.20 |
10.0 |
|
2x0.5+2x0.22 |
16/0.20+7/0.20 |
4.1 |
|
2x0.5+4x0.22 |
16/0.20+7/0.20 |
4.4 |
|
2x0.5+6x0.22 |
16/0.20+7/0.20 |
5.2 |
|
2x0.5+8x0.22 |
16/0.20+7/0.20 |
5.4 |
|
2x0.5+10x0.22 |
16/0.20+7/0.20 |
5.8 |
|
2x0.5+12x0.22 |
16/0.20+7/0.20 |
5.9 |
|
2x0.5+14x0.22 |
16/0.20+7/0.20 |
6.3 |
|
2x0.5+16x0.22 |
16/0.20+7/0.20 |
6.6 |
|
2x0.5+20x0.22 |
24/0.20+7/0.20 |
7.1 |
|
2x0.75+2x0.22 |
24/0.20+7/0.20 |
4.8 |
|
2x0.75+4x0.22 |
24/0.20+7/0.20 |
5.0 |
|
2x0.75+6x0.22 |
24/0.20+7/0.20 |
5.4 |
|
2x0.75+8x0.22 |
24/0.20+7/0.20 |
5.8 |
|
2x0.75+10x0.22 |
24/0.20+7/0.20 |
6.2 |
|
2x0.75+12x0.22 |
24/0.20+7/0.20 |
6.4 |
|
2x0.75+14x0.22 |
24/0.20+7/0.20 |
6.6 |
|
2x0.75+20x0.22 |
24/0.20+7/0.20 |
7.8 |
Applicable Standards
Fire resistant CEI 20-36/2-1 / EN 50200 (PH90) / IEC 60331-21
Flame retardant EN 60332-1-2 / IEC 60332-1-2
Fire retardant EN 50266-2-4 (cat. C) / IEC 60332-3-24 (cat. C)
Acid gas emission EN 50267-2-1 / IEC 60754-1
EN 50267-2-2 / IEC 60754-2
Smoke density EN 61034-2 / IEC 61034-2
